Virtual Courtroom In-Court Setup

The Liberty Virtual Courtroom is an optional service integrated into the Liberty Court Recorder.

Courts may purchase a subscription for the Virtual Courtroom service from their Liberty reseller.

A court subscribing to the service can create links and phone codes that provide Internet-based access for remote participants accessing the courtroom.


Courtroom Setup

To use the Virtual Courtroom, courts must setup the room according to the following steps:

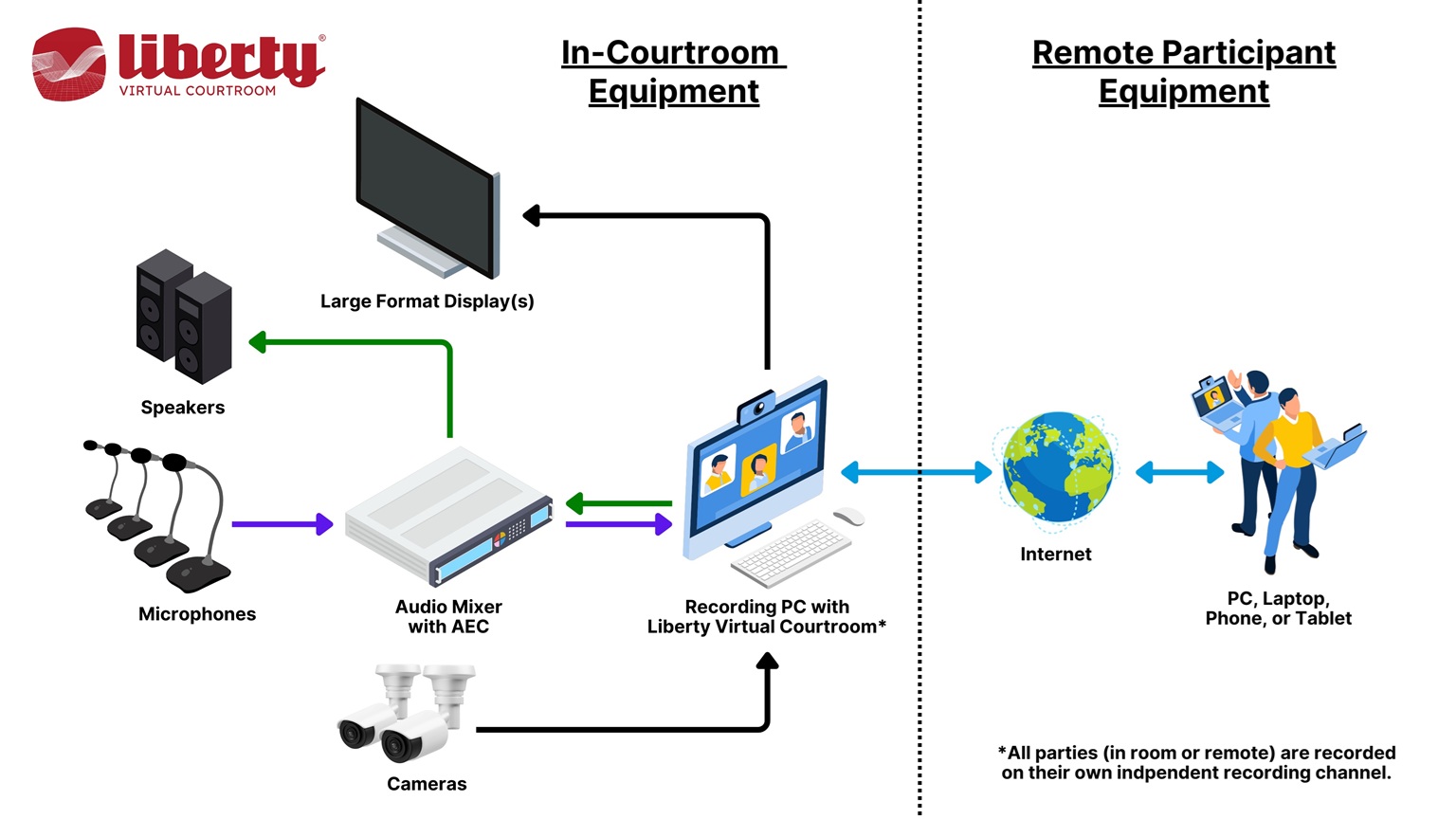

The diagram below provides an overview of the required setup.

Image description

The courtroom must have a sound reinforcement system, commonly referred to as a DSP that includes speakers to allow remote participants to be heard in the courtroom. The DSP must send the audio from the courtroom microphones to the recording computer and it must have echo cancelling features to eliminate echo and feedback. Courtroom cameras can be used to send video to the remote participants.

Review and implement the recommended computer setup.

The following recommendations are provided for the computer and network configurations:

  • The recording PC must be rated with at least a CPU score of 20,000 or higher, according to CPU Benchmarks provided by PassMark benchmarking assessments found on this linked webpage. The Intel i5-14400T processor is an excellent example of a processor that will handle the stress or running the virtual courtroom. Contact your Liberty reseller or Liberty support for questions about various advanced configurations.
  • An Internet connection with a speed of at least 15Mbps both up and down must be provided.
  • The recording PC must have a second video output display port that connects to a large screen monitor. A second monitor display allows persons in the courtroom to see the remote participants.
  • The recording PC should have a second network port where audio /video traffic is isolated on a separate network from general network traffic. A separate network switch is required to facilitate connection of the cameras and the audio equipment.
  • UDP Firewall ports must be opened so the Recorder can initiate communications traffic to the Internet-based conference server. The default ports used are all UDP, port number 3479 and UDP ports 50000 to 50999.
  • Secure Access Service Edge (SASE) security systems used by the account, such as Zscaler or Prisma (Palo Alto Networks), must allow all traffic destined for the conference server. All such traffic must be set to "bypass" the SASE system. SASE systems are known to restrict and inhibit the transmission of audio/video traffic. Review this linked document or contact Liberty Recording for more details on the need for audio/video traffic to bypass Zscaler.
  • If telephone support is required, then a telephone line directed at the conference server on the Internet to facilitate telephone calls into the virtual court is required.

Review and implement the recommended Audio Configuration

Courts must use a sound reenforcement system that includes echo cancellation and feedback supression, commonly refered to as a DSP. Scroll down on this page to the section entitled Supported Audio Recording DSPs for a list of DSPs widely used with the virtual courtroom.

Configure the Recorder Application

In the Recorder options, go to the Remote Conferencing tab.

  • The server name of the Conference Server along with an appropriate username and password.
  • Whether the remote participants will receive video from the courtroom.
  • The audio output playback channel.

Provide Courtroom Cameras

The Virtual Courtroom facility can send video from the courtroom to remote participants. We strongly recommend the use of Axis brand IP cameras for capturing video in the courtroom.

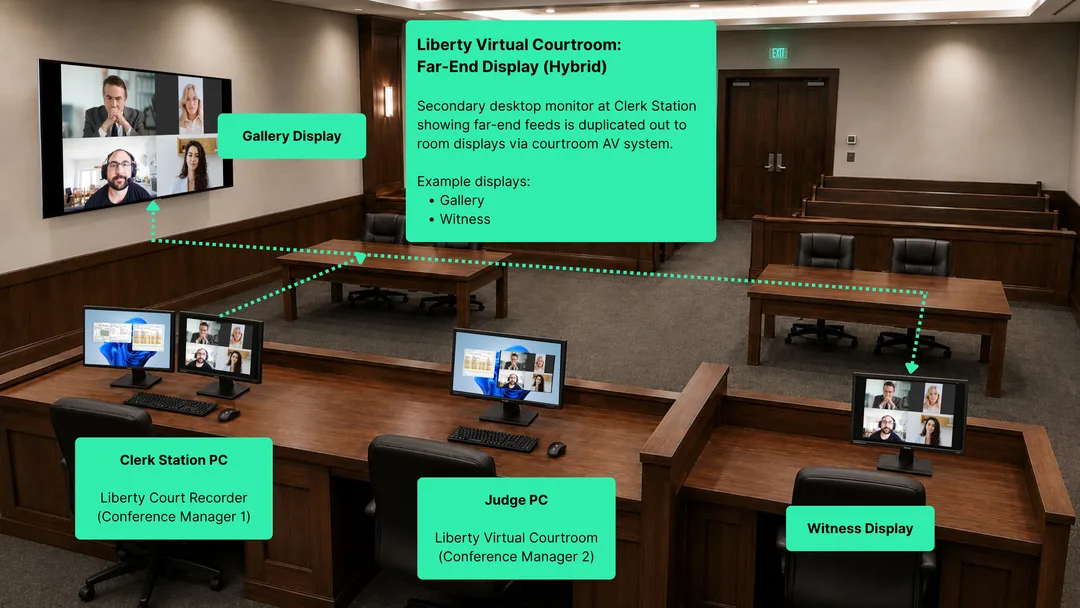

Image description

Provide and connect a telephone line (PSTN) to be used by the conference system, if applicable.

The Virtual Courtroom facility can support remote participants using old-style dial telephones connecting to the conference.

Court IT staff must discuss providing and connecting such a telephone line with their local supplier.
